View

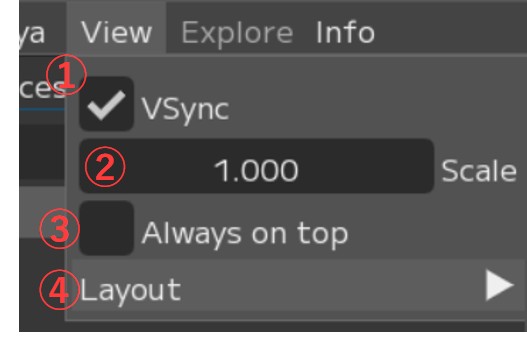

This section describes the menu for changing the screen layout (View) to suit your workflow.


../../_images/06_glossary_Menu_View_View.jpg

① ☑ VSync:
Vertical sync setting. * Enabled by default.

② Scale:
UI display scaling setting

③ ☑ Always on Top:
Whether to keep FCS always displayed in the foreground

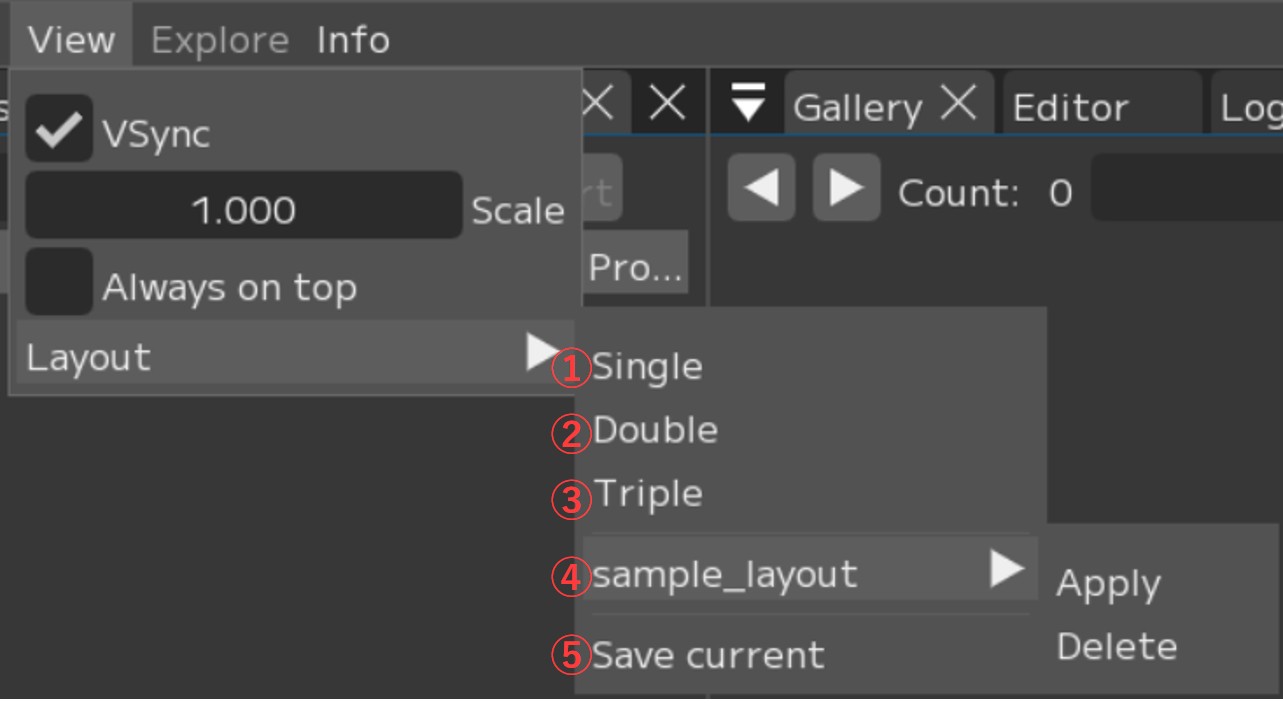

④ Layout ▶:
Layout preset settings and switching


../../_images/06_glossary_Menu_View_Layout.jpg

① Single: Switch to Single layout

② Double: Switch to Double layout

③ Triple: Switch to Triple layout

④ Sample_Layout ▶: Select a custom layout registered with [Save current]
[Apply]: Switch to the saved layout
[Delete]: Delete the saved layout

⑤ Save current: Save the current layout with a name

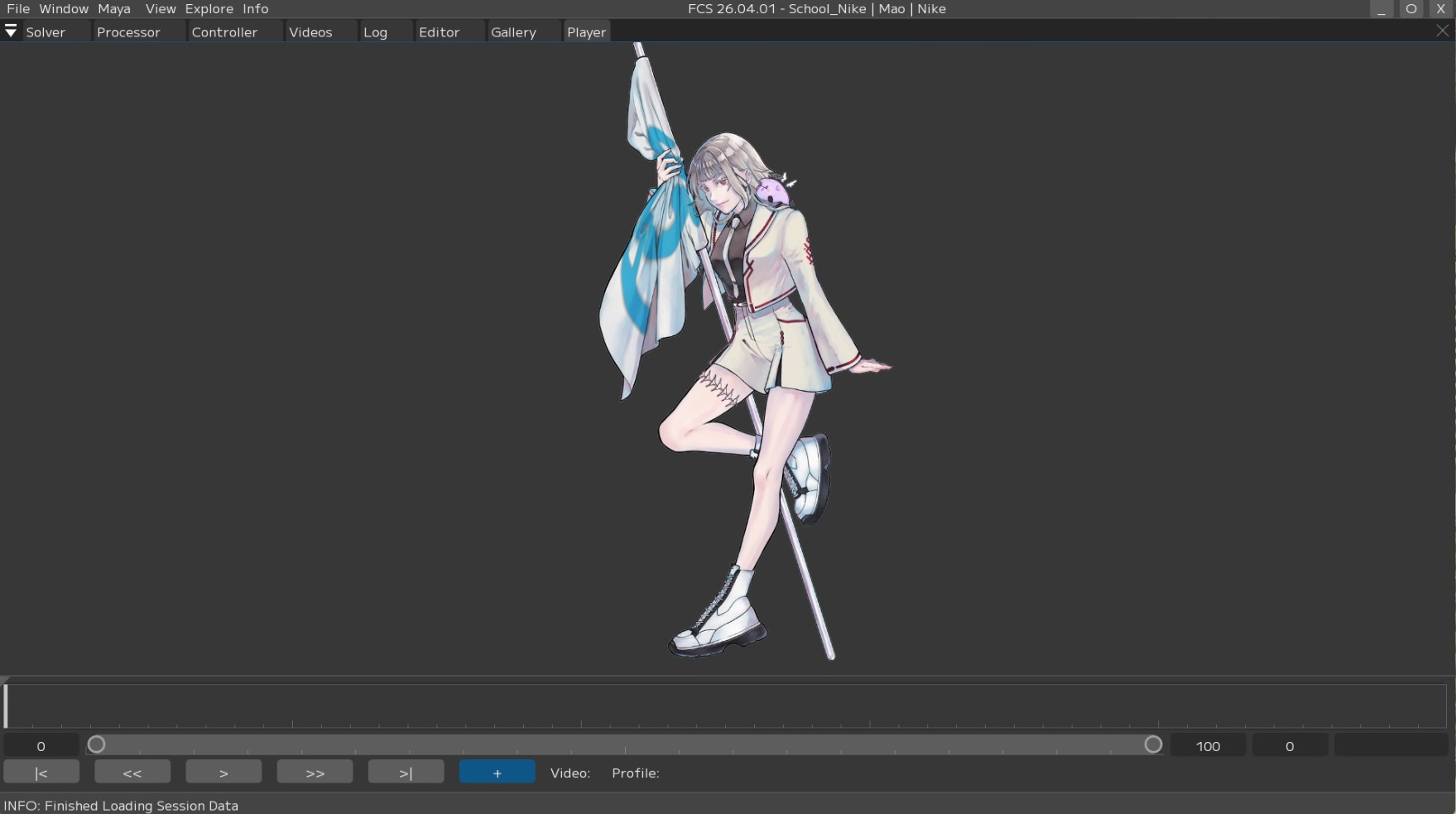

① Single Layout

../../_images/06_glossary_Menu_View_Single.jpg

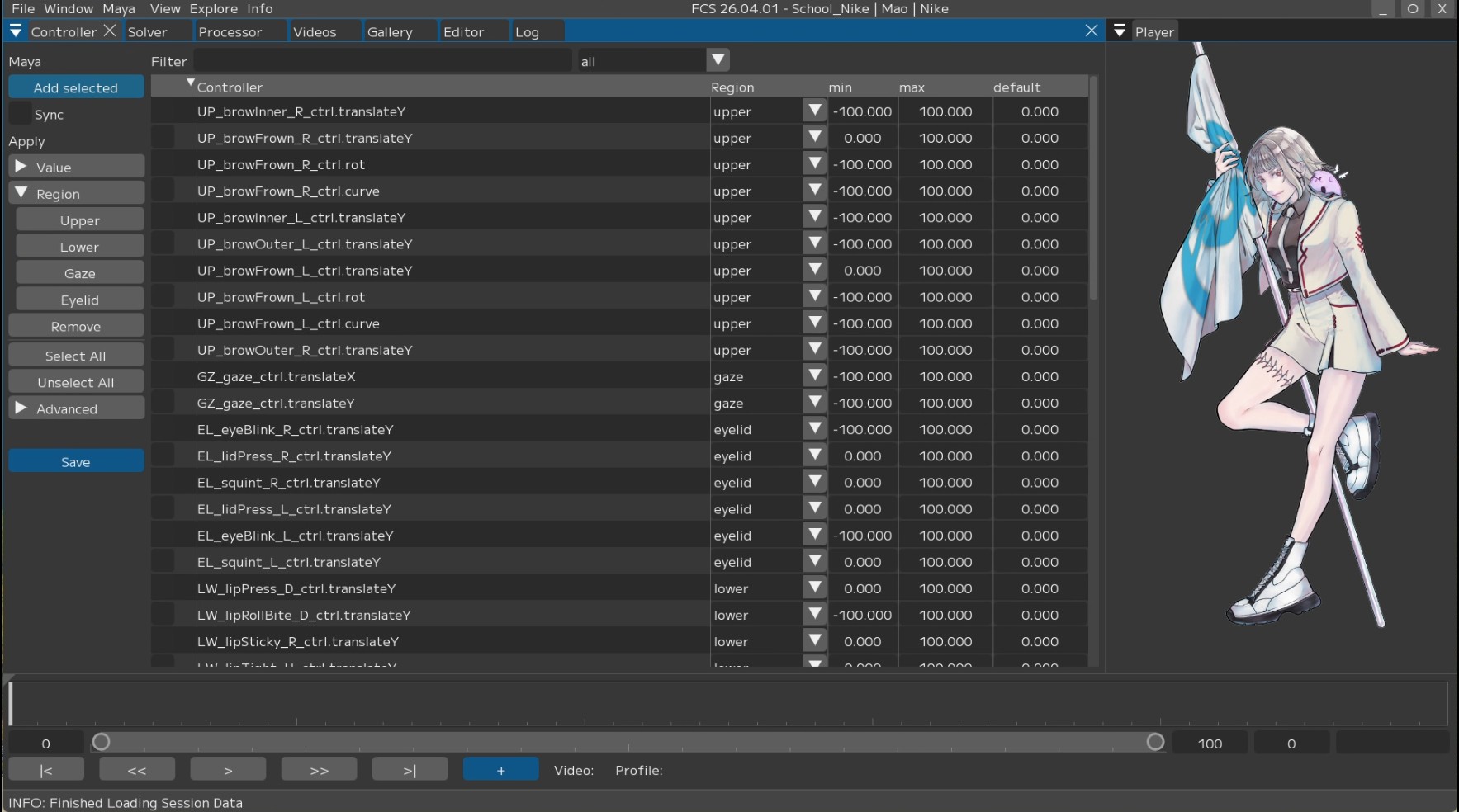

② Double Layout

../../_images/06_glossary_Menu_View_Double.jpg

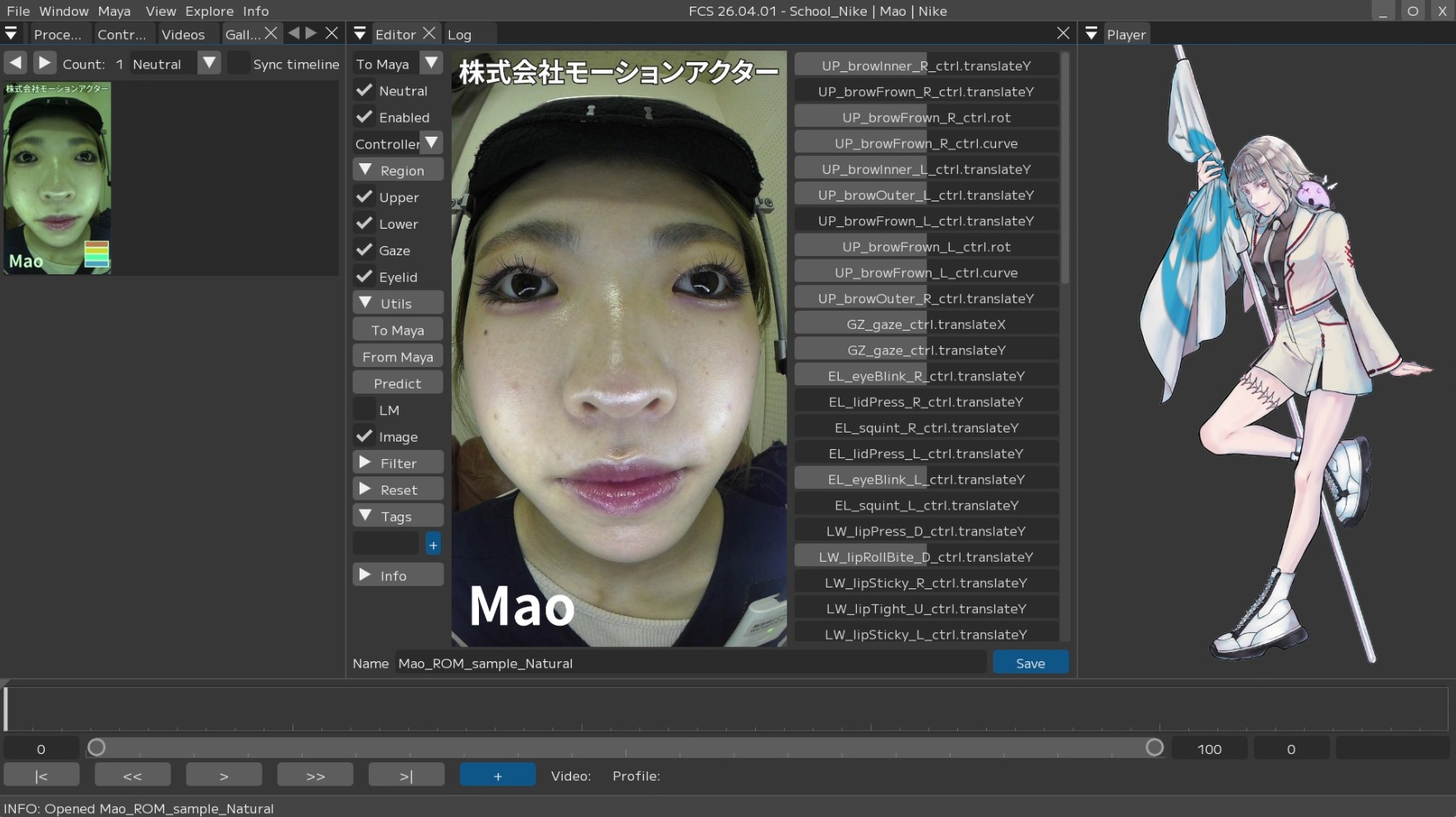

③ Triple Layout

../../_images/06_glossary_Menu_View_Triple.jpg


How to Save a Layout

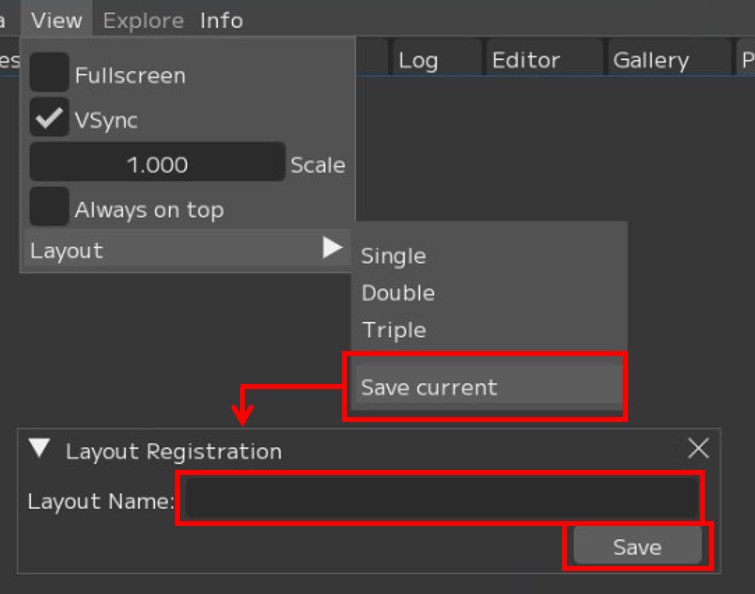

1. Press [Save current] to open the “Layout Registration” window.
Enter the layout name in Layout Name and press [Save].

../../_images/06_glossary_Menu_View_Savecurrent.jpg

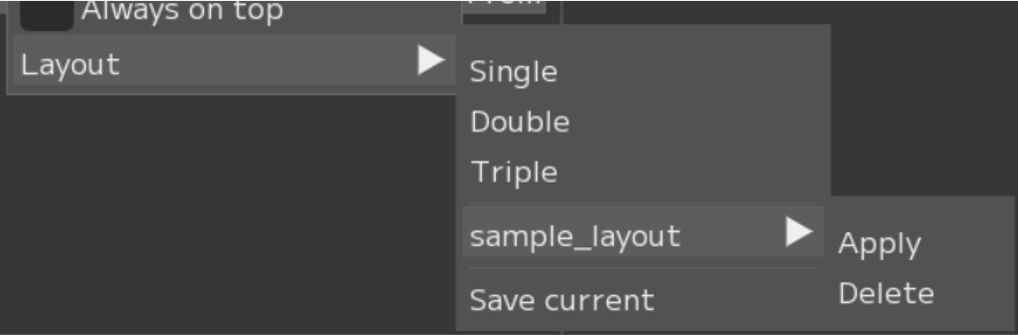

2. The saved layout appears in the list.
[Apply]: Switch to the saved layout
[Delete]: Delete the saved layout

../../_images/06_glossary_Menu_View_Layout_02.jpg



3. The saved layout data is stored at the following path.

C:\Users\$USER\.fcs\Cortado\$FCS_VERSION\layouts\saved
